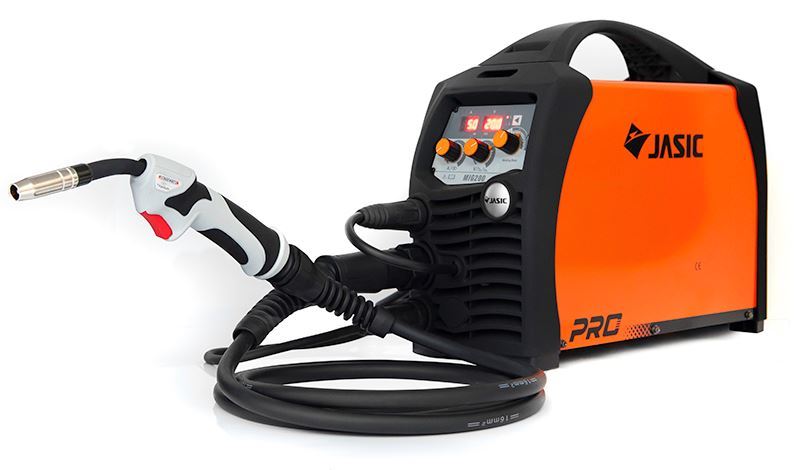

Jasic MIG 200 Synergic Multi Process Compact Welder Package

Brand: JASIC
Manufacturer part number: JM-200CS
Availability Date: 1-3 Days
£1,225.98 incl VAT
£1,751.40 incl VAT
The highly portable Jasic MIG 200 Synergic compact inverter welder is equipped with powerful IGBT components, multi process capabilities, digital meters and a singular PCB for improved efficiency and maintenance.
+ -

The highly portable Jasic MIG 200 Synergic compact inverter welder is equipped with powerful IGBT components, multi process capabilities, digital meters and a singular PCB for improved efficiency and maintenance.

This compact and portable synergic MIG welding inverter offers excellent welding characteristics and consistently reliable performance for both MIG/MAG and MMA welding processes.

The welding inverter comes complete with MIG gun, an earth return and a gas regulator. There is also the option of adding a MIG welding trolley (See images) that takes a full size gas cylinder.

Key Features

• Advanced Synergic Control
 (Pulse parameters are selected automatically)
• IGBT MIG/MAG/MMA/Lift TIG Multi Process
• Self-adaptive crater filling function
• Digital Amp & Voltmeter
• Working frequency is beyond the audio range,
 greatly reducing noise pollution
• Easy arc starting, less spatter, stable current
 and excellent weld bead shaping
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Compact size, lightweight and modern design
• Burn back control
• Can weld electrodes of up to 4mm
• Generator friendly**

Package Includes

Inverter power source, MIG welding torch, Work return lead and clamp, Gas hose and regulator, Operating instructions, 5 year warranty*

Fact Sheet

Jasic MIG 200 Synergic Multi Process Fact Sheet

Products specifications
Input voltageAC 230V - 50/60 Hz
Input Power (kVA)9.4
Voltage Adjustment Range (V)11 - 28
Current range10 - 200A
Rated duty cycle @ 40ºC200A @ 35%
No-Load Voltage (V)53
Wire Spool Sizeø 200mm
Power factor0.7
Protection classIP21S
Insulation classF
Dimensions LxWxH485 x 185 x 370mm
