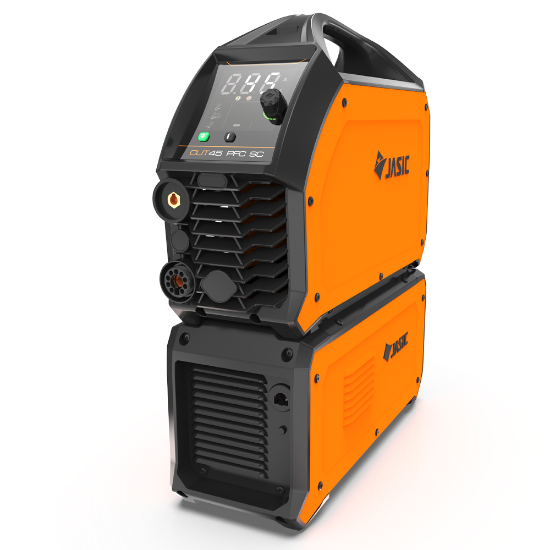

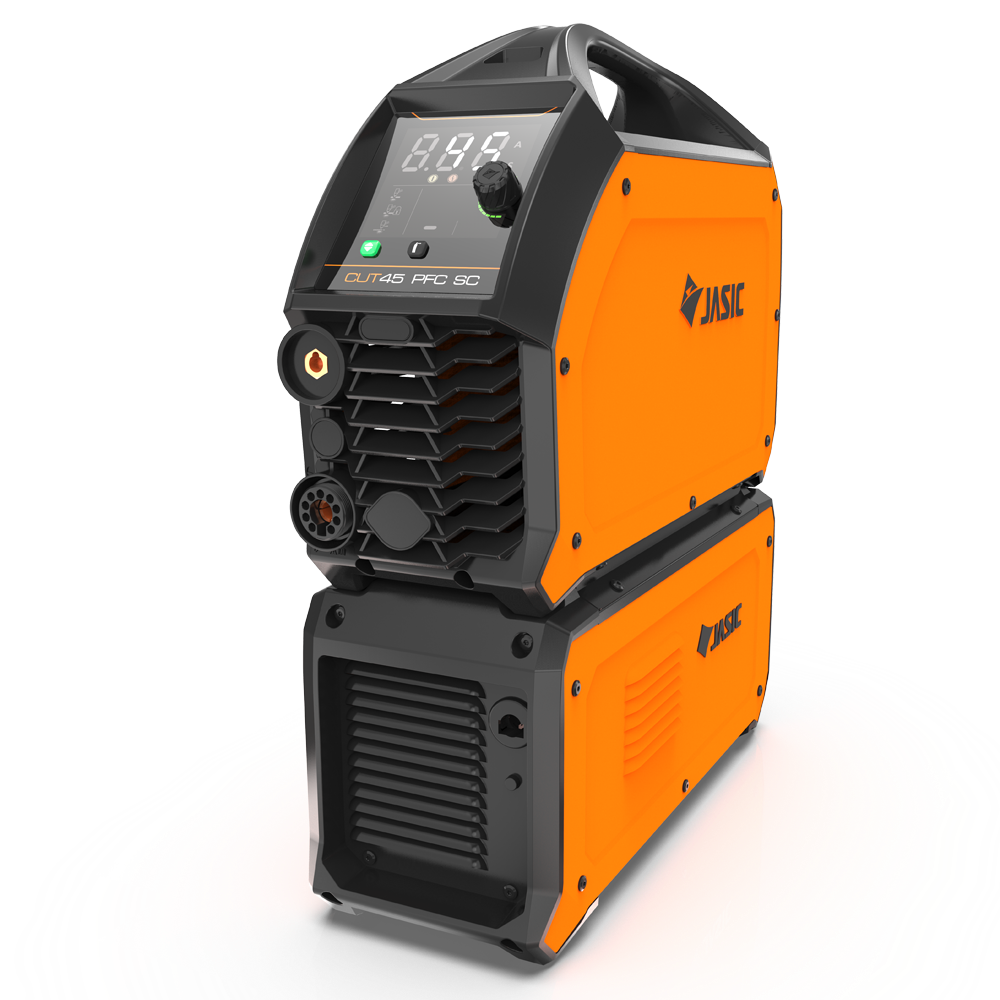

Jasic EVO Cut 45 PFC Plasma Inverter c/w Air Compressor

Brand: JASIC
Manufacturer part number: EP-45SC
Availability Date: 1-3 Days
£1,659.00 incl VAT
Jasic EVO Cut 45 PFC: Advanced plasma inverter with ClearVision tech, versatile controls, and robust safety features.
+ -

Key Features

• With in-built compressor
• Rugged, ergonomic design
• ClearVision technology
• Adaptable wide voltage range
• Welding engineer mode
• SurePlasma technology for consistent arc ignition
performance with different torch lengths
• Mesh cutting, 2T/4T, non HF arc ignition and pilot arc
• Gas check, postflow time setting, cutting torch length setting
• Power factor correction (PFC), generator friendly
• Quick factory reset; auto sleep mode
• ABAP: Active Balancing Air Passage
• Fan on demand
• Key power electronic component protection
• Overcurrent and overheat protection
• TFT screen (optional)

Package Includes

6m Cutting Torch, 3m Earth Clamp, Compressor

Fact Sheet

Jasic EVO Cut 45 PFC Plasma Inverter c/w Air Compressor Fact Sheet

Products specifications
Input voltageAC95-265V, 50/60 Hz, AC 115V / AC 230V
No load voltage300V
Rated input current37A / 27A
Leff26A / 15A
Rated input power4.3kVA / 6.2kVA
Current range20-30A / 20-45A
Arc startingNHF
Rated duty cycle @ 40ºC25%
Clean cut (carbon steel)/@400mm/min5mm / 12mm
Severance (carbon steel)10mm / 20mm
Efficiency86%
Power factor0.99
Idle state power<50W
Protection classIP23S
Insulation classH
Dimensions LxWxH548 x 187 x 558mm
Weight26.5Kg
Recommended generator size6.5kVA / 9.5kVA
*
*
*
