ESAB Renegade ET 180iP TIG Welding Machine

Brand: ESAB
SKU: 0447700910
Manufacturer part number: 0447700910
Availability Date: 1-3 Days
£987.60 excl tax

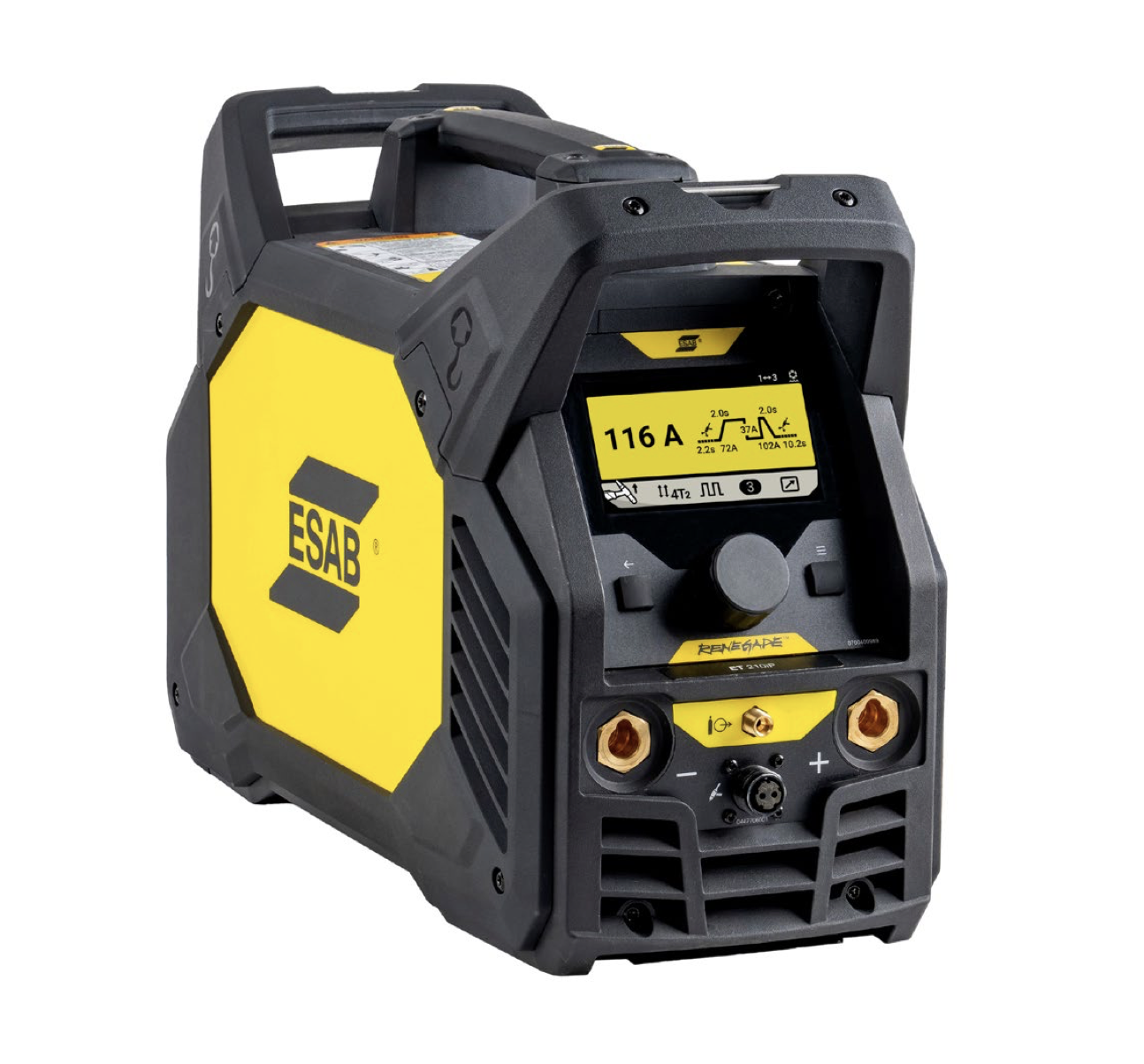

ESAB Renegade ET 180iP TIG Welder is a professional single phase, high frequency start TIG and MMA welding machine.
+ -

Renegade ET 180iP TIG Welder is a professional, single-phase, highfrequency start TIG and MMA welding machine. It is designed with industrial-grade IP23 housing, made to stand strong, even in the most demanding environments.

At the same time, it’s lightweight and transporting it is easy thanks to multiple lift points and a high-quality carry strap. Renegade is portable and ready to move with you.

Renegade ET models also have a built-in, active PFC circuit. Even if you’re on a poor power network or using a long extension cable (up to 100 m), you can count on Renegade to continue to perform.

Renegade is simple to use, as well. It offers direct access to parameter settings and an intuitive, bright interface to easily read them, even from a distance. For the advanced model, you can choose between a classic LED user interface or an innovative, color screen one

Features

  • Highest durability housing with IP23 rating, ideal for indoor and outdoor use in demanding environments.
  • TIG pulse up to 999 Hz to increase control of heat input and weld pool.
  • Built-in PFC circuit to ensure a stable arc, even with extra long cables, up to 100 m
  • Easy-to-read and quick-to-set panel, reduces downtime and improves accuracy
  • Dual-current mode trigger allows users to switch between two output current levels to control the heat input and the size of the weld pool
  • 4.3 in. color screen provides a visual presentation of adjustment (advanced model)
  • Easily access up to 10 jobs by torch trigger (advanced model)
  • Modular system with tool-less connection to optional water cooler and trolley
  • New Exeor TIG torch included in advanced model

Packake Includes

Power source, work lead 3m, SR-B 26 torch 4m, gas hose 4m, shoulder strap.

Factsheet

Renegade ET 180iP Factsheet



Input Voltage 115/230 V ±15 %, 1, 50/60 Hz
MMA Welding Output 110 A24.4 V (115 VAC) @ 25 % Duty Cycle
71 A22.8 V (115 VAC) @ 60 % Duty Cycle
55 A22.2 V (115 VAC) @ 100 % Duty Cycle
180 A27.2 V (230 VAC) @ 25 % Duty Cycle
116 A24.6 V (230 VAC) @ 60 % Duty Cycle
90 A23.6 V (230 VAC) @ 100 % Duty Cycle
TIG Welding Output 140 A15.6 V (115 VAC) @ 25 % Duty Cycle
90 A13.6 V (115 VAC) @ 60 % Duty Cycle
70 A12.8 V (115 VAC) @ 100 % Duty Cycle
180 A17.2 V (230 VAC) @ 25 % Duty Cycle
116 A14.6 V (230 VAC) @ 60 % Duty Cycle
90 A13.6 V (230 VAC) @ 100 % Duty Cycle
Open Circuit Voltage 78 VDC
Power Factor at Maximum Current 0.99
Setting Range MMA/DC
230 VAC
115 VAC

20.6-27.2 V (15-180 A)
20.6-24.4 V (15-110 A)
Setting Range TIG/DC
115 VAC
230 VAC

10.4-15.6 V (10-140 A)
10.4-17.2 V (10-180 A)
Fuse Slow 16 A
Energy Save Mode <30 W
Supply Plug CEE 16 A
Operating Temp -10 to +40 °C
rated kVA 6 kVA
3.3 kVA
Enclosure Class IP23
Dimensions, L x W x H 460 x 200 x 320 mm
Weight 11 kg
*
*
*
