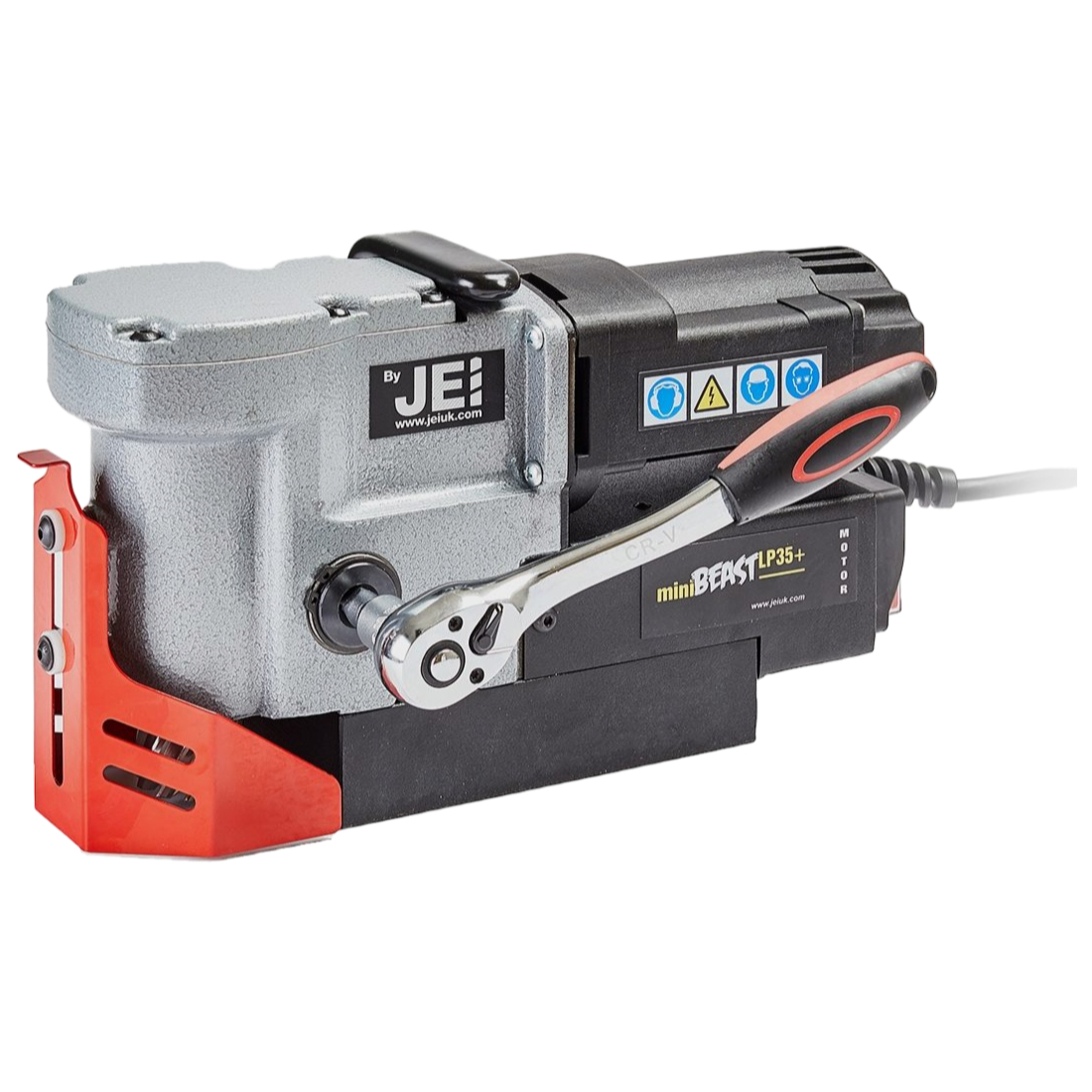

MINIBEAST™ LP35+ 110V JEI Magnetic Drill

With its compact design, the MiniBeast™ LP35+ is ideal for drilling in those smaller spaces. The LP35+ packs a powerful punch at only 176mm in height and 9.5kg in weight, making it perfect for structural site work.

Brand: JEI

Manufacturer part number: DRILL-LP35P/2

JEI MiniBeat Logo

PREMIUM LOW PROFILE DRILLING MACHINE, IDEAL FOR USE WITH HSS OR TCT CUTTERS

Ultra-low fixed working height only 176 mm.
Extremely low weight of just 9.5 kg.
Compact design perfectly suited to space restricted areas.
Maximum drilling diameter of 35 mm with annular cutters.
Will accept standard length (35 mm) tungsten carbide annular cutters.
Positive quill drive for close tolerance holes.
Accepts short series twist drills with 19.05 mm (3/4”) weldon shank.
Integrated safety guard.
Detachable feed ratchet handle can be fixed from either left or right side.
Lifting handle for easy transportation.

JEI MINIBEAST™ LP35+ Magnetic Drill Max Drilling

£913.50 incl VAT

increase decrease

Availability Date: 1-3 Days

Overview
Specifications
Contact Us

JEI MiniBeat Logo

PREMIUM LOW PROFILE DRILLING MACHINE, IDEAL FOR USE WITH HSS OR TCT CUTTERS

Ultra-low fixed working height only 176 mm.
Extremely low weight of just 9.5 kg.
Compact design perfectly suited to space restricted areas.
Maximum drilling diameter of 35 mm with annular cutters.
Will accept standard length (35 mm) tungsten carbide annular cutters.
Positive quill drive for close tolerance holes.
Accepts short series twist drills with 19.05 mm (3/4”) weldon shank.
Integrated safety guard.
Detachable feed ratchet handle can be fixed from either left or right side.
Lifting handle for easy transportation.

JEI MINIBEAST™ LP35+ Magnetic Drill Max Drilling

Products specifications

Attribute name	Attribute value
Magnetic Drills
Model	MINIBEAST™ LP35+
Voltage	110 volt
Max Drilling	35 mm
Max Drilling Depth	20 mm with HSS Turbo™ Steel annular cutter. 32 mm with Turbo™ Tough TCT annular cutter
Twist Drill Capacity	12 mm Ø with optional Turbo™ Twist drills
Motor	920 W
RPM	1 Fixed Speed no load 520 RPM loaded 350 RPM
Height (Fixed)	176 mm
Length	380 mm
Width	147
Magnetic Base Dimensions	165 x 80 mm
Magnet Deadlift	910 kg on 1” Plate (8900 N)
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Weight	9.5 kg
