MAGBEAST® HM40EX 220V

Rely on the expert capabilities of the MagBeast® HM40EX. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 40mm diameter cutting capacity. - Cutter not included.

Brand: JEI

Manufacturer part number: DRILL-HM40EX/2

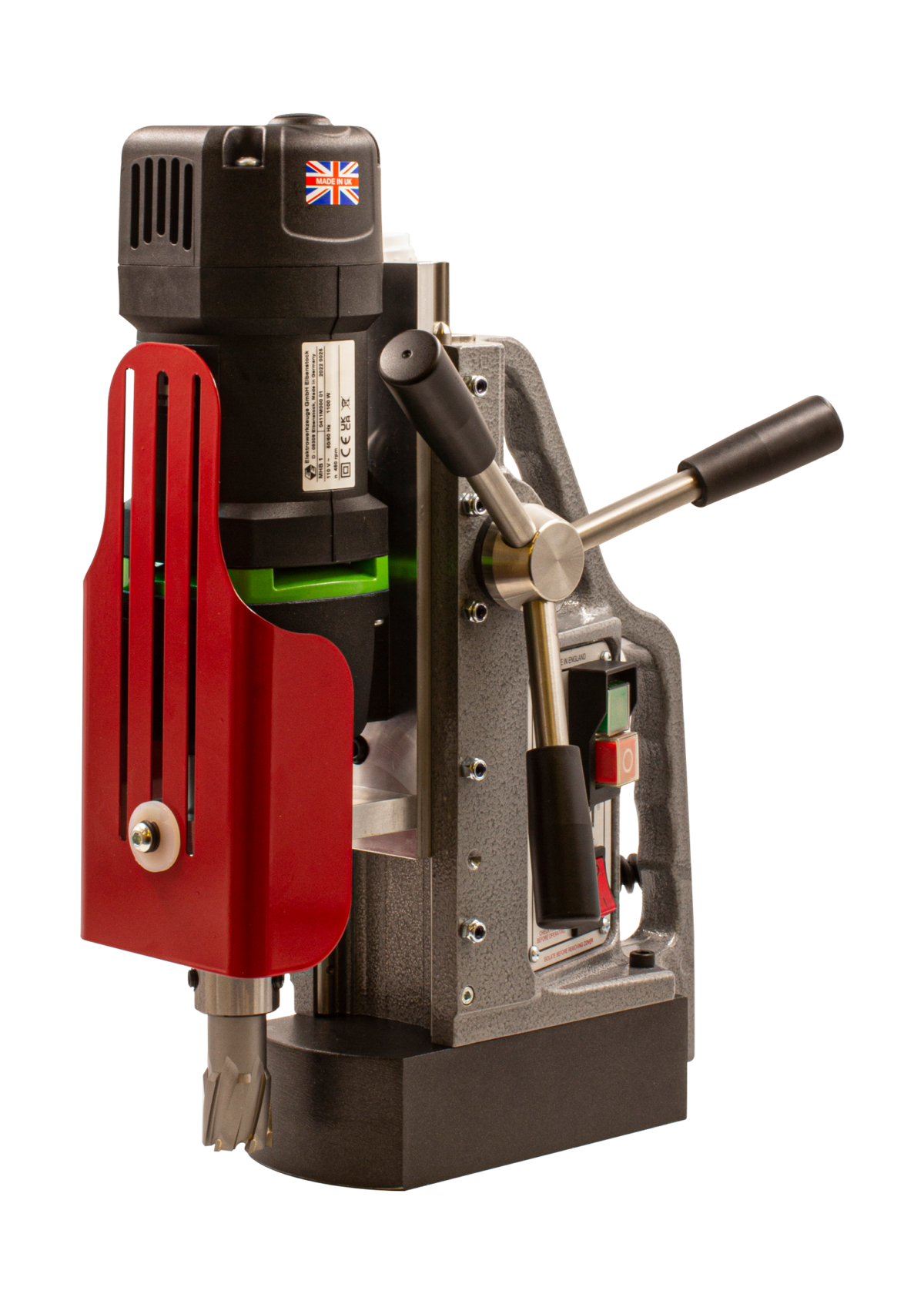

JEI MAGBEAST Magnetic Drill

A LIGHTWEIGHT AND POWERFUL MAGNETIC DRILLING MACHINE FOR MAXIMUM PERFORMANCE

Powerful 1100 W motor – enabling 40 mm cutter capacity
Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.
170mm total drill travel – facility to use extra-long cutters.
Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience.
Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19)

JEI MAGBEAST HM40EX - Core Drilling Capacity JEI MAGBEAST HM40EX - Twist Drilling Capacity JEI MAGBEAST HM40EX - Countersink Capacity

JEI MAGBEAST HM40EX - Made in the UK

£690.00 incl VAT

increase decrease

Free shipping

Availability Date: 1-3 Days

Overview
Specifications
Contact Us

JEI MAGBEAST Magnetic Drill

A LIGHTWEIGHT AND POWERFUL MAGNETIC DRILLING MACHINE FOR MAXIMUM PERFORMANCE

Powerful 1100 W motor – enabling 40 mm cutter capacity
Weighs only 11.5 kg with a 40 mm cutter capacity – unrivalled weight to cutting capacity ratio.
170mm total drill travel – facility to use extra-long cutters.
Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience.
Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19)

JEI MAGBEAST HM40EX - Core Drilling Capacity JEI MAGBEAST HM40EX - Twist Drilling Capacity JEI MAGBEAST HM40EX - Countersink Capacity

JEI MAGBEAST HM40EX - Made in the UK

Products specifications

Attribute name	Attribute value
Magnetic Drills
Voltage	220 volt
Model	MAGBEAST® HM40EX
Cutter Capacity	40 mm Ø x 110 mm depth of cut
Twist Drill Capacity	13 mm Ø with optional attachment (part no - JEICA-13MM/19)
Countersink Capacity	40 mm
Spindle	19 mm
Motor	1100 W
RPM	No load 720 RPM / Loaded 450 RPM
Height Min / Max	320 / 500 mm
Length	280 mm
Width	165 mm
Magnetic Base Dimensions	85 x 170 mm
Magnet Deadlift	1100 kg on 1” Plate (10750 N)
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Weight	11.5 kg
