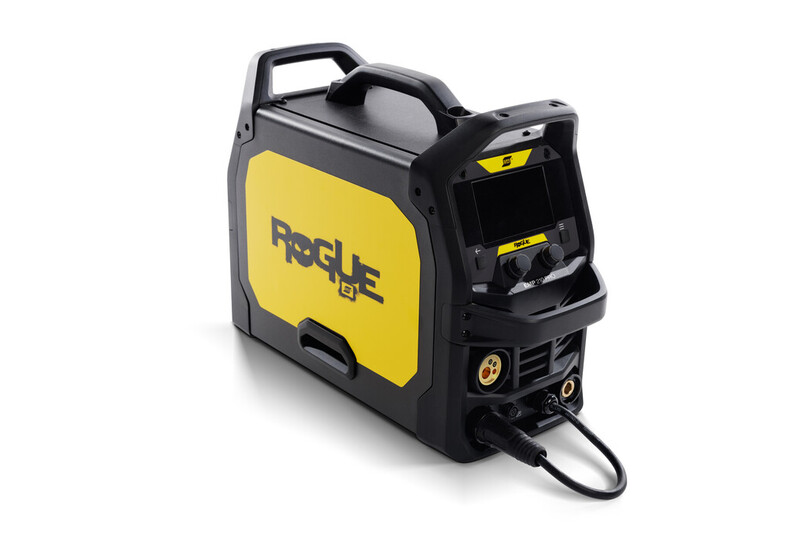

ESAB Rogue EMP 210 PRO Multi-Process Welder

Brand: ESAB
Manufacturer part number: 0700301092
Availability Date: 1-3 Days
£1,324.80 incl VAT
ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance.
+ -

ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Features

Entry-level welder with professional performance

Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.

Built to withstand impact after impact

No other machine at this price point comes close to matching Rogue’s strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.

A portable workhorse

Rogue’s compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.

Next-level multiprocess welding performance

A full-colour 5” screen and intuitive interface allow easy access to all features and parameters, even in bright sunlight. Take performance to the max with a true multiprocess welder with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, Stick/MMA, and 6010 cellulosic capabilities.

Advanced features for total control

With Arc Dynamics you can fine tune arc characteristics based on the material you are welding. So if you need a stiff arc for carbon steel, or a soft arc for stainless, Rogue will not let you down. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds

Package Includes

210A multi-process power source with mains cable 16 A plug 3 m, MXL 201 MIG Torch Euro 3 m, Return cable kit, OKC 35-50 16 mm2, 3m, Electrode holder Handy 200A heavy duty 50 mm OKC 3 m, Gas Hose with quick connect/open 4.5 m, ESAB OK AristoRod 12.50 0.8 mm 1 kg, ESAB GoldRox Electrode, 2.5x350 mm 1 kg, Feed rolls 0.6/0.8 mm V (fitted), 0.8/0.9 mm V and 0.8/0.9 mm VK, Safety instruction

Fact Sheet

ESAB Rogue EMP 210 Pro

Voltage230 VAC 1, 50/60 Hz
MIG (GMAW) Welding Output210 A / 24.5 V @ 30 % Duty Cycle
136 A / 20.8 V @ 60 % Duty Cycle
105 A / 19.2 V @ 100 % Duty Cycle
MMA (SMAW) Welding Output180 A / 27.2 V @ 30 % Duty Cycle
116 A / 24.7 V @ 60 % Duty Cycle
90 A / 23.6 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output210 A / 18.0 V @ 30 % Duty Cycle
136 A / 15.4 V @ 60 % Duty Cycle
105 A / 14.2 V @ 100 % Duty Cycle
Current Range30-210 A
Voltage Range12-26 V
Wire Feeder Specifications2.0-16.5 m/min
Open Circuit Voltage78 VDC
Metal
Aluminium
Stainless Steel
Cored Wire
Mild Steel

0.6-1.0 mm
0.6-1.0 mm
0.6-1.0 mm
0.6-1.0 mm
Max Spool Diameter100 & 200 mm
Power Factor at Maximum Current0.99
Efficiency at Maximum Current>82 %
Energy Save Mode50 W
Operating Temp-10 - +40 °C
Enclosure ClassIP23S
CertificationCE
Dimensions, L x W x H590 x 220 x 385 mm
Weight16.7 kg

*
*
*
